[PRO] Comment effects: VTubeStudio integration

How to create a moving hit-detection area with comment effects (WordParty) using VTubeStudio integration

Using VTubeStudio integration, you can create a hit-detection area for drops that moves in sync with tracking.

Preparing VTubeStudio

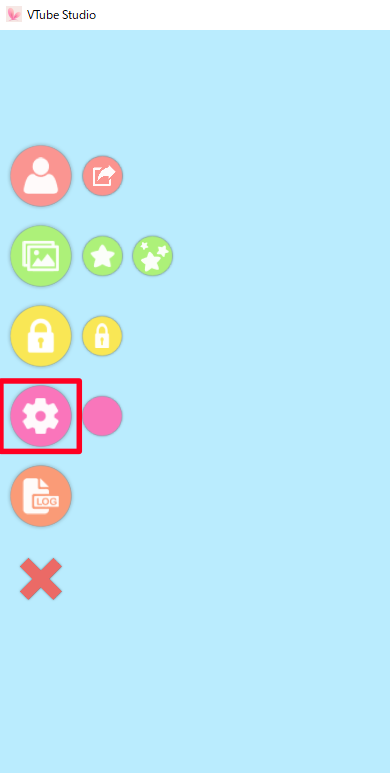

Launch VTubeStudio and open its settings.

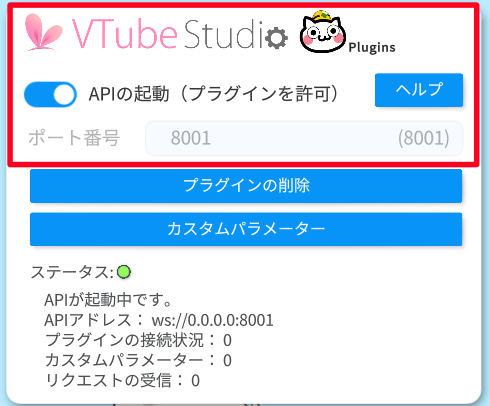

Find the "VTubeStudio Plugins" item around the middle of the settings.

Check "Start API (Allow Plugins)".

Start API (Allow PluginsPortDelete PluginCustom ParametersHelpAPI is runningAPI Address: ws://0.0.0.0:8001Plugin Connections: 0Custom Parameters: 0Requests Received: 0

※ Make sure the port number is set to 8001

※ If it's different, quit whatever application is using port 8001 before launching VTubeStudio

Preparing OneComme

Configuring the integration

Open "top-right menu > Integrations".

StopClear commentsSettingsTemplatesDummy CommenterDictionaryIntegration

Scroll the top tabs sideways to select "VTubeStudio", then check "Enable".

IntegrationEnabledExecutable File PathAuto RunHostnamePort

After that, verify that the port number matches the one shown in VTubeStudio.

Configuring WordParty

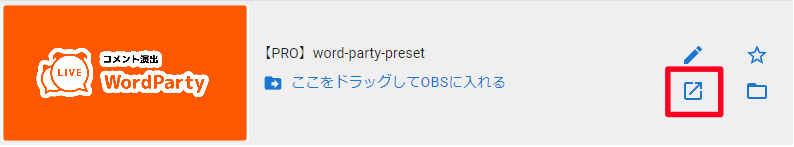

Open the WordParty editor from Templates.

After clicking the add button, select "Fixed Wall" as the effect.

GeneralCrackerNice, niceConfettiConnectorWorkingFolder ProfileNameEffectCrackerFixed coordinatesConfetti (PROThrowing (PROConnector (PROPatternWidthPreviewDentisityCoefficient of restitutionTracking with VSTDisabled FolderFrictionInjection anglePreviewHeight

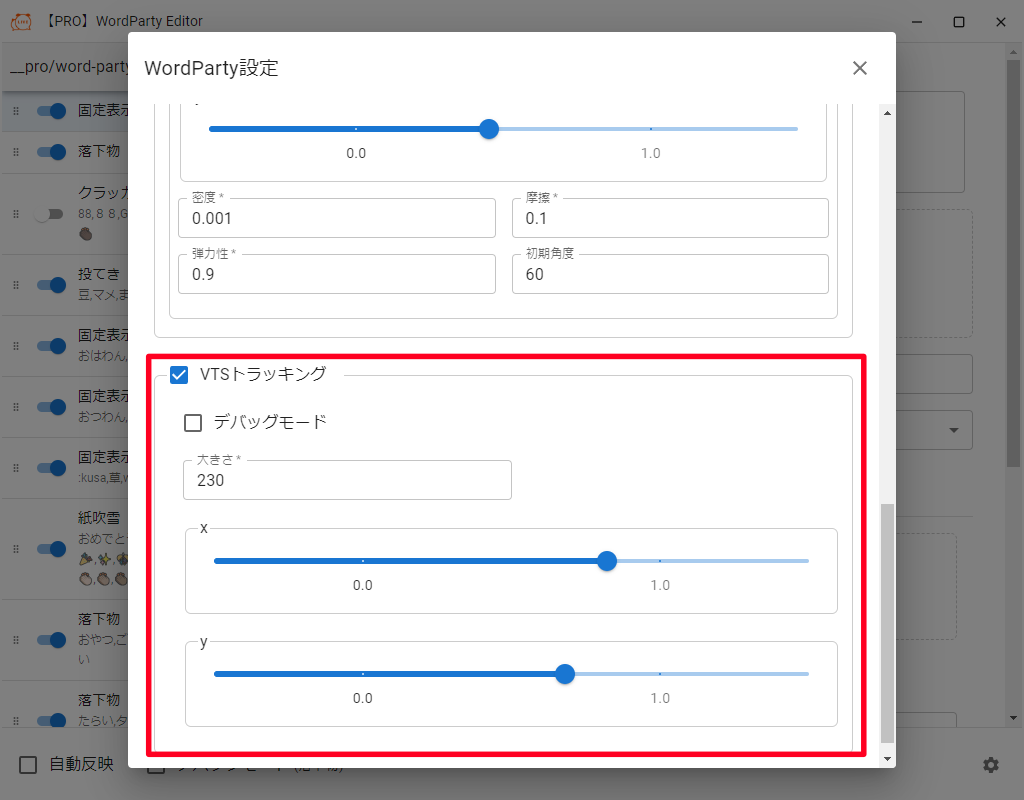

Check "Tracking with VST".

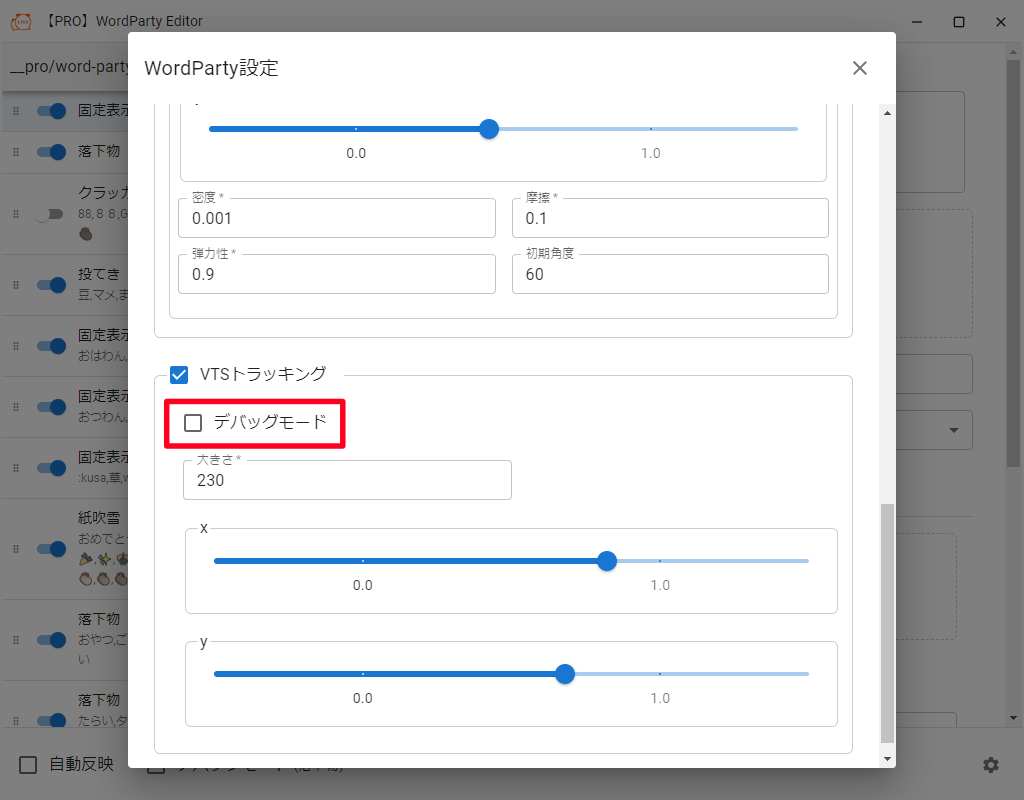

Also check "Visualization" now, since you'll need it for position adjustment later.

EffectMouse ClickOFFPatternVisualizationshapeRound shapeWidthPositionPreviewDentisityCoefficient of restitutionTracking with VSTSensitivityOriginInjection angleHeight
  • 摩擦 → Friction

With Visualization checked, the wall becomes visible once it's placed in OBS.

Adjusting the position

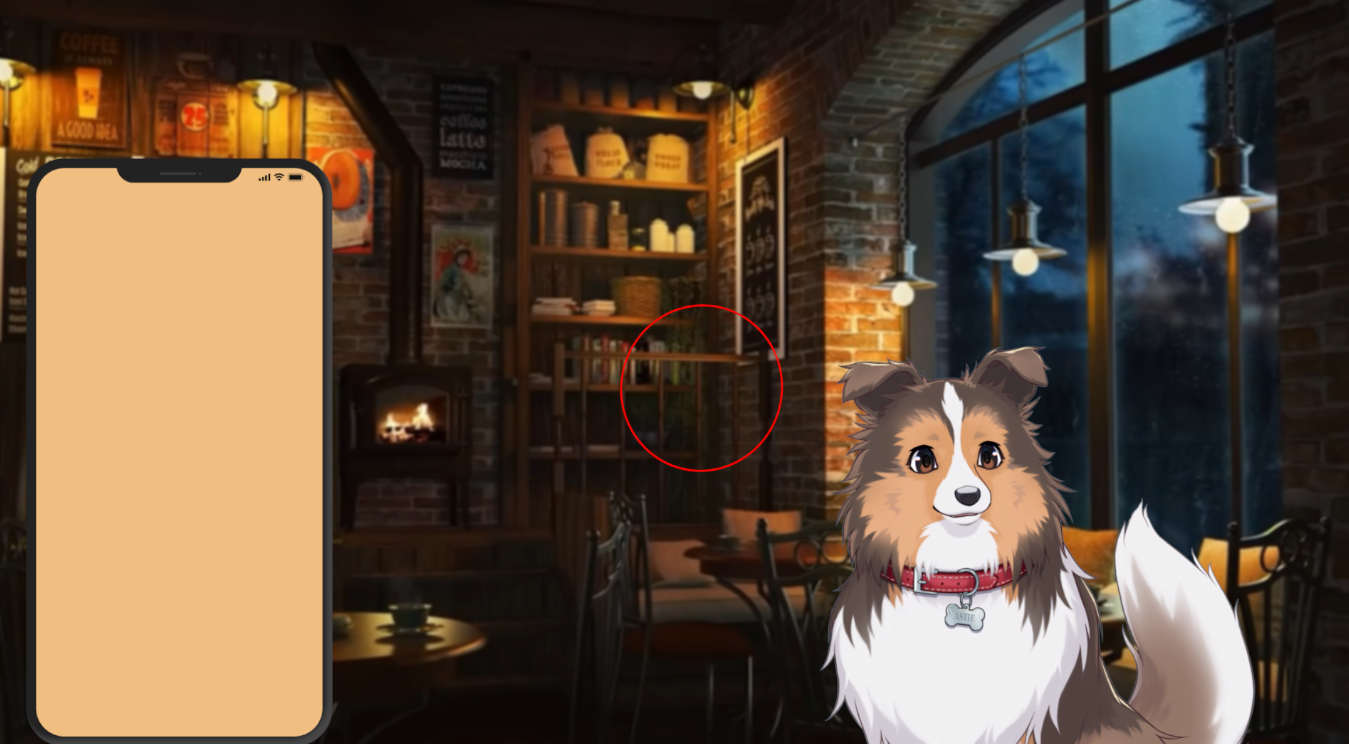

When you add the WordParty template to OBS, a visualized circle and origin point appear as shown below.

Example setup:

shapeRound shapeWidthHeightPositionPreviewDentisityCoefficient of restitutionInjection angle

Adjusting sensitivity

With VTubeStudio running and tracking active, turn your head to the side and up to check how the circle moves.

If the circle moves more than the model does, set the value below 1, such as 0.8.
If the circle moves less than the model, set the value above 1, such as 1.2.

Adjusting the origin point

Since the reference position for angles differs between models, adjust the origin point.

Changing the origin point moves the red dot (generally, it's best to align it with the neck position).

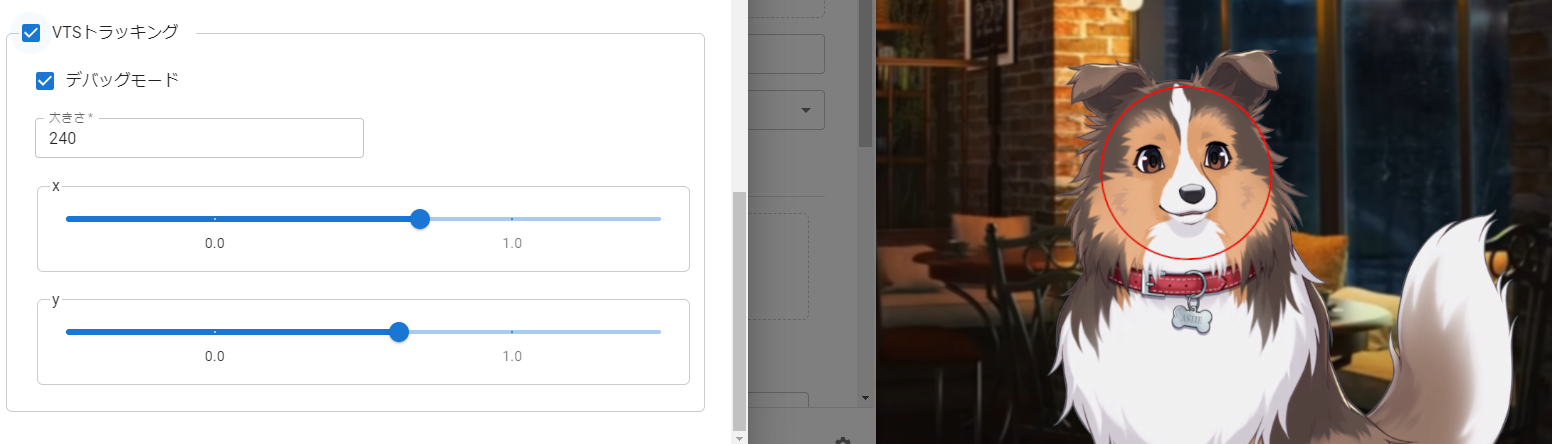

Example setup:

Tracking with VSTSensitivityOrigin

Now, if you turn your head left and right, you'll see the circle rotate around the origin point.

Finally, uncheck "Visualization" under "Fixed Wall" and the setup is complete.

Tips

You can place multiple fixed walls.

For example, you can build a more complex hit-detection wall by adding a separate fixed wall for the ears.

You can also place a fixed wall with VST Tracking turned off to keep it stationary, so feel free to experiment.
